Deep draw metal stamping for a well-known vehicle manufacturer
ADM used deep draw metal stamping to develop a new tank product for a valued client.
The challenge
A well-known UK vehicle manufacturer required a new tank product for hybrid vehicles.
As part of ADM’s ongoing commitment to customer satisfaction, we wished to demonstrate that the final product was achievable to the specifications required.
The solution
ADM’s skilled engineering team used the deep draw cold form metal stamping process to create two simulated halves of the tank.
The deep draw process can be a challenging area of cold stamping and demands careful consideration of the product and product development from the inception and simulation stage, all the way through to the final product delivery.
To address this, our team worked closely with the client; taking the design concept and developing the product in partnership with our toolmaking partner and the client.
Using the simulations, we then manufactured parts with our 1600Ton hydraulic press:

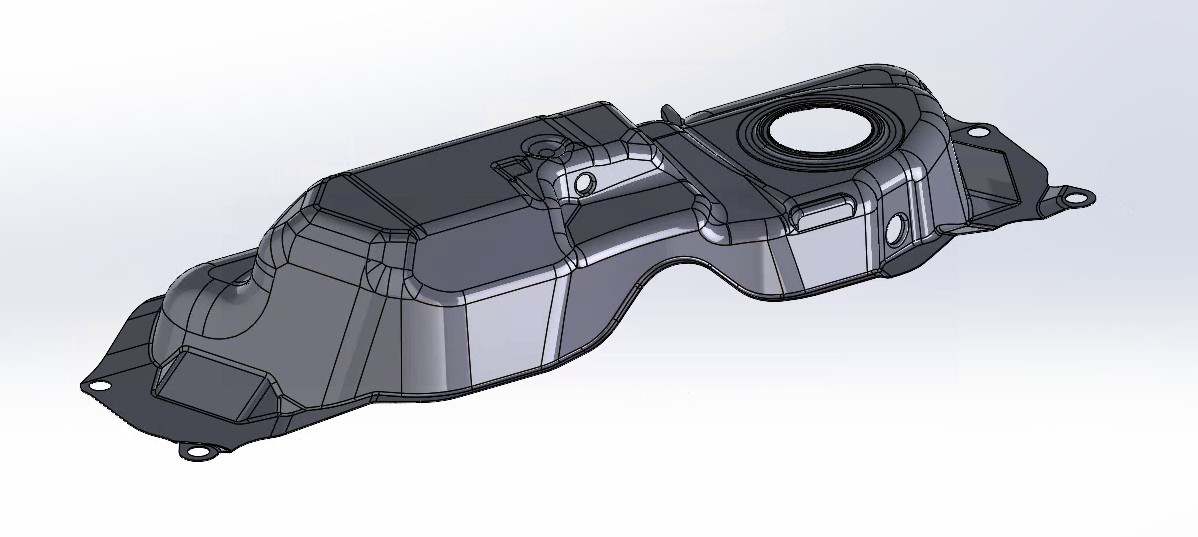

The starting point: An actual CAD model of part required by the client

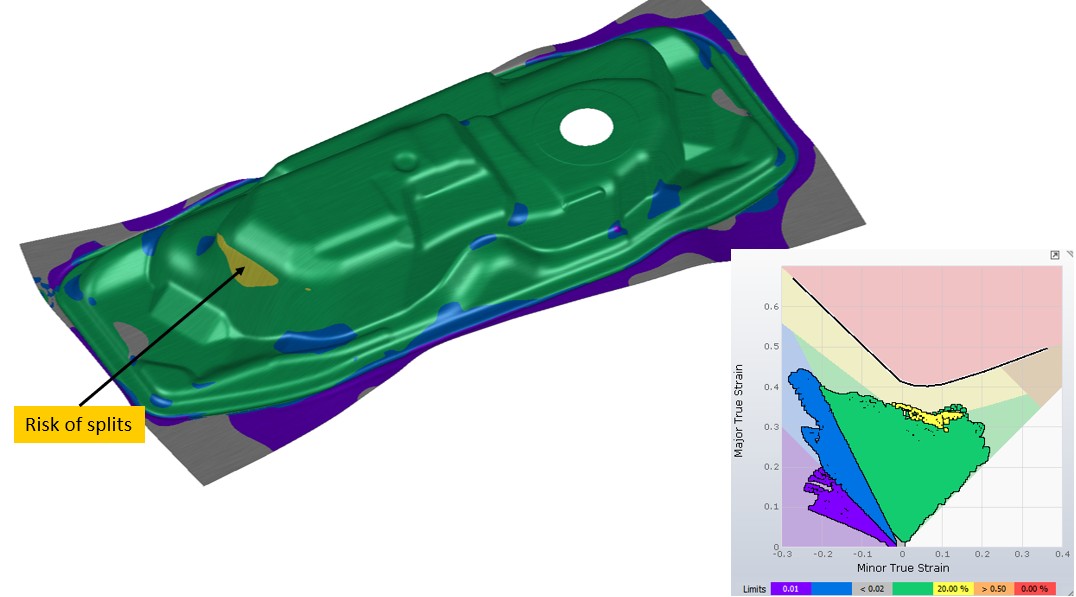

1st stage development: Simulation data showing development of part in 1st stage (to produce part takes multiple stages).

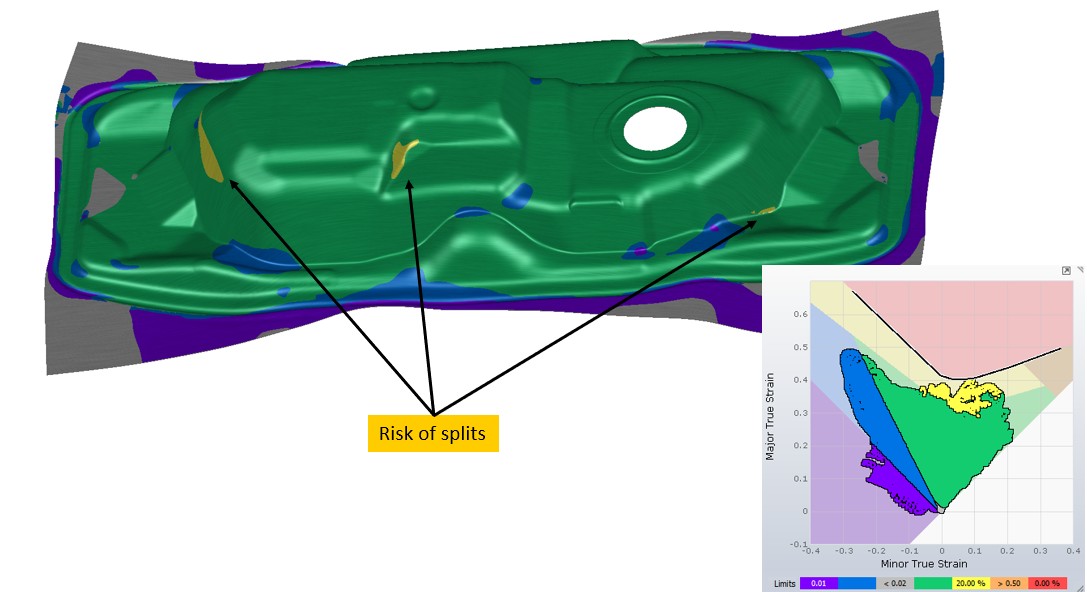

2nd stage development: Simulation data showing development of part in 2nd stage.

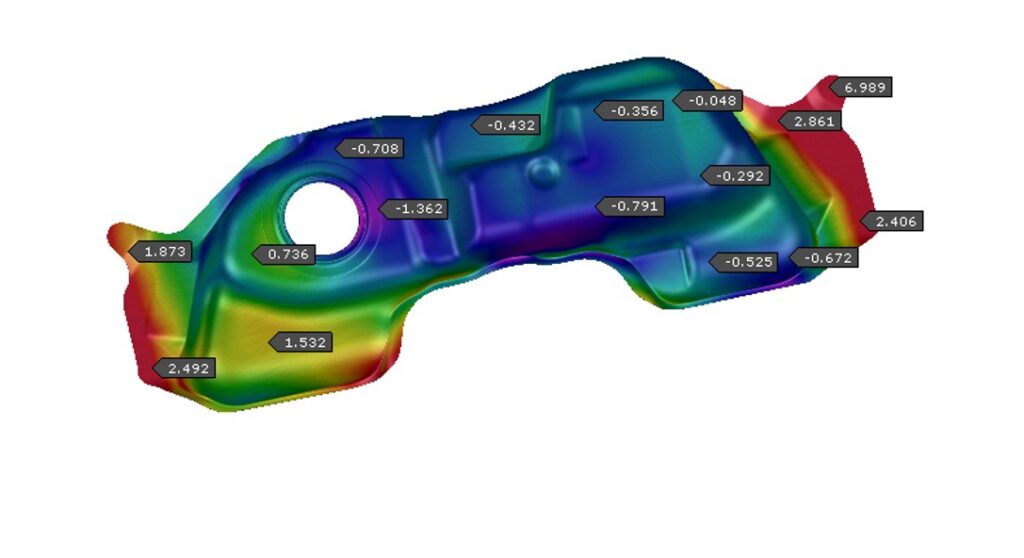

Final stage simulation:
CAD model marriage between upper & lower tank halves:
Flat sheet ‘blank’ being loaded into press tool:
Press in the upward cycle after forming revealing the formed part from the flat sheet of metal:
The success
By utilising ADM’s deep draw metal stamping capabilities together with our ability to manufacture panels with deep forms, we were able to demonstrate that the product could be manufactured successfully.
Working closely with our customers combined with our ability to form panels with deep forms, sets us apart from our competitors and allows ADM to offer a unique capability to our customer base.
We are proud to offer this process to our customers and are actively looking for similar opportunities with new and existing customers.
– Scott Maddison, Commercial Manager, ADM Pressings
